HYBRID brand DTH Hammers are produced with high quality while maintaining international standards. The best quality alloy steel pass through the radio graphic and ultrasonic tests. Then the Heavy duty DTH Hammers are heat treated in the most advanced method inside the factory. The carbide bits are from branded manufactures across the world.

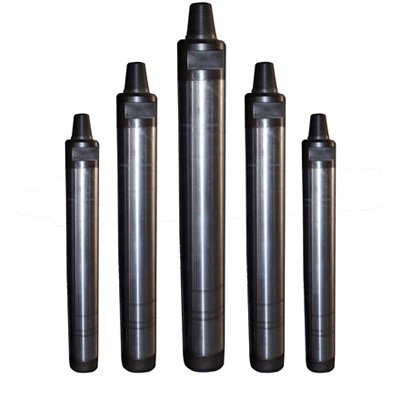

Types of Down The Hole Hammers:

• High Pressures Hammers (Valve Less Hammers):

There Are Two Types:

• Hybrid Type

Ranges from 4.0’’ TO 12’’
(M-40, M-45, M-50, M-65, JET-117,8”GLADIATOR , M-90, M-100, M-120,)

• Vector Type

(Suitable To SD & DHD Series Shanks)
Ranges from (6.0’’ TO 10.0’’) 6.0’’, 7.0’’, 8.0’’, 10.0’’.

• Low Pressure Hammers (Valve Hammers)

Range from (3.0’’ TO 8.0’’)
3.0’’ Cheetha Hammer
4.5’’ HP/Panther Hammer
8.0 DHD17 Hammer

Cluster Hammer:
Vector brand Cluster Hammer is manufactured to international specifications, from only the best quality Alloy Steel, machined to high precision and supreme standards. The product is heat- treated in the most modern, fully process controlled, in house facility. The Tungsten carbide Buttons used in hammer production are obtained from leading and reputed native as well as foreign manufactures.
Sizes Available: Vector 17”, Vector 20’’, Vector  22”, Vector  24”

Odex Hammers
Available Sizes

4.5" X 6.5"	6.0" X 8.0"
6.5" X 8.5"	8.0" X 10.0"

Hammer For 6.0"(152mm) T0 6 1/2"(165mm) Drilling and suitable with SD-6 Bit
Specifications:

Hole Dia	MM	152-165
Hammer Dia	MM	138.0
Cylinder Bore	MM	112.0
Pistone Stroke	MM	90.0
Piston Weight	KG	22.5
Hammer Length without bit	MM	1200
Weight without Bit	KG	90
Connection		API 3 1/2" PIN
Hammer Length with bit Extend	MM	1345.0
Hammer Length with Bit Retracted	MM	1300.0
Size of Top Sub Wrench Flat	MM	90.0
Suitable bit		SD 6 BIT

8 " Hammer

Hole Dia	MM	200-300
Hammer Dia	MM	175
Cylinder Bore	MM	143
Pistone Stroke	MM	90
Piston Weight	KG	41.0
Hammer Length without bit	MM	1245
Weight without Bit	KG	153.0
Connection		API 41/2" PIN
Hammer Length with bit Extend	MM	1395
Hammer Length bit retracted	MM	1350
Size of back head wrench	MM	115
Suitable		DHD-380
